Description

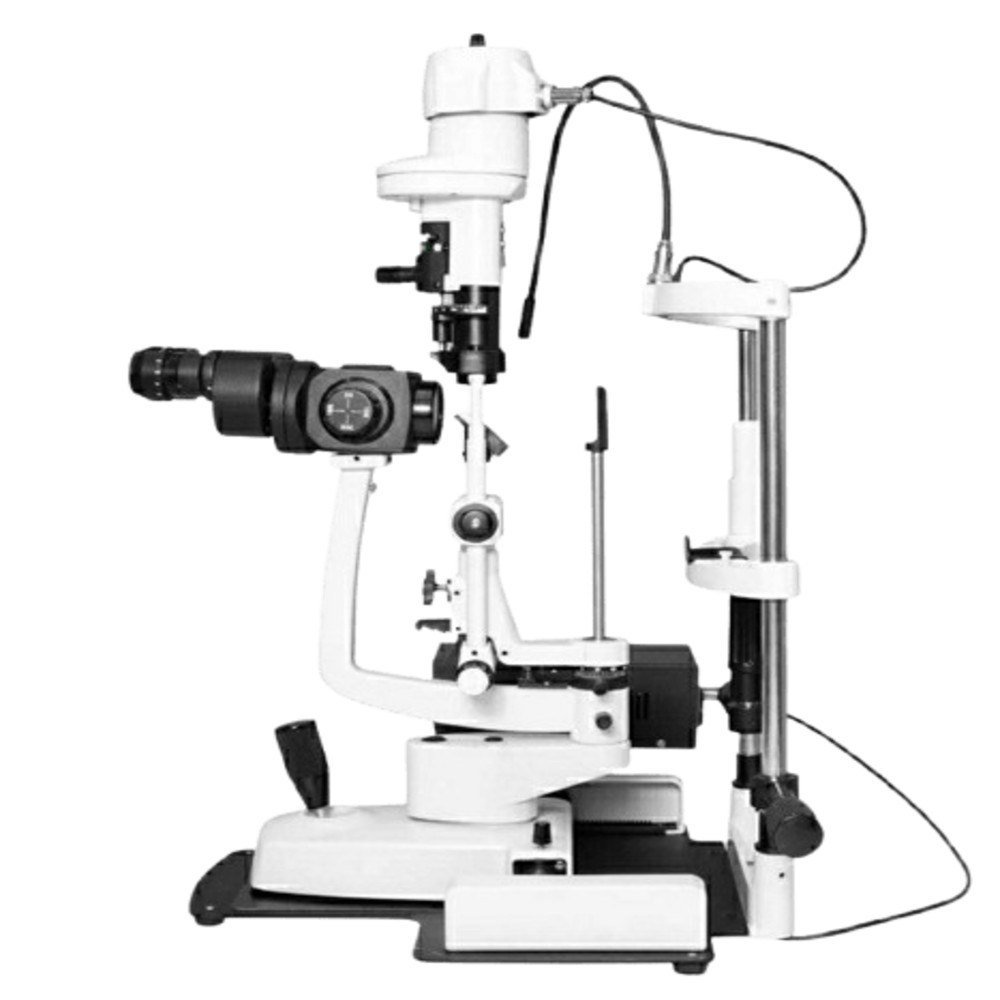

SLIT LAMP WITH METAL BASE PLATE.xlsx
| Binocular Microscope | ||
|---|---|---|
| Type : | Stereoscopic with converging Optics. | |
| Eye Pieces : | 10X and 15X | |
| Objective : | 1X and 1.6X | |
| Magnifications : | Objective | X Eye Piece = Magnification |
| 1X | 10X | 10X |
| 1X | 15X | 15X |
| 1.6X | 10X | 16X |
| 1.6X | 15X | 24X |
| Eye P.D. Adjustment : | 55 - 94mm (For 10X Eye Piece) | 53 - 92mm (For 15X Eye Piece) |
| Illumination Unit : | ||
| Light source : | 6V/20W (Pre-focused Halogen bulb with holder). | |
| Filters : | Cobalt Blue, Red Free, Green, Open Aperture | |
| Slit Diaphragm : | 12,9,6,3,0,2, & 1 to 12mm cont. variable | |
| Slit Rotation : | 0 to 180 degree | |
| Slit Inclination : | 0 to 20 degree (Steps of 5 Degree) | |
