Description

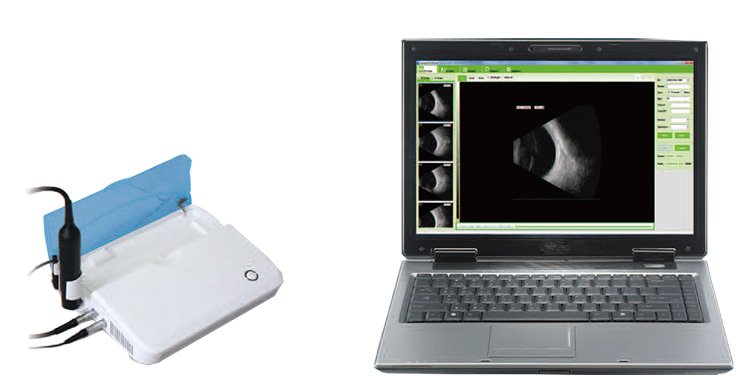

Sonoptek Ultrasound Ophthalmic A/B Scan SP-2000 for Ophthalmology Clinics & Hospitals
The Sonoptek Ultrasound Ophthalmic A/B Scan SP-2000 is an ophthalmic ultrasound system combining B-Scan imaging and A-Scan biometry in a single platform. It is designed to support ocular imaging, biometric measurement and IOL calculation workflows in ophthalmic clinical environments.
The system uses a 12.50 MHz magnetic-driven noiseless probe for B-Scan imaging and a 10 MHz solid and lightweight A-Scan probe with fixation light for biometric measurements. Its 53° sector scanning system, variable gain control, multi-level image zoom and 256-level grayscale/false-color display provide tools for reviewing captured ultrasound images.
For biometry, the SP-2000 supports 14–48 mm measurement, automatic or manual measurement using a foot switch, and both contact and immersion methods. Multiple IOL calculation formulas, including SRK-II, SRK-T, Binkhorst-II, Holladay, Hoffer-Q, Haigis and Post-LASIK calculations, are included in the supplied specifications.
Key Features
- Combined B-Scan and A-Scan ophthalmic ultrasound system
- 12.50 MHz magnetic-driven noiseless B-Scan probe
- 10 MHz A-Scan probe with fixation light
- 53° sector scanning
- 0–50 mm scanning depth
- 0.1 mm clinical resolution
- Variable gain from 20–105 dB
- Multi-level image zoom
- Distance, perimeter and area measurement
- Automatic and manual A-Scan measurement
- Contact and immersion measurement methods
- Supports multiple eye types
- Stores 10 scan results per eye
- Multiple IOL calculation formulas
- PDF case report archiving
- 100-frame / 7-second cine loop
- A, A+B, B+B comparison and B display modes
- 256 grayscale shades and false-color display
- High-resolution display and external printer output
Applications
The Sonoptek SP-2000 can support ophthalmic workflows involving:
- A-Scan ocular biometry
- B-Scan ocular ultrasound imaging
- Ophthalmic ultrasound examination
- IOL calculation
- Contact biometry
- Immersion biometry
- Cataract-related biometric assessment
- Imaging of phakic and pseudophakic eyes
- Ophthalmic examination documentation and case archiving
Why Choose Sonoptek A /B Scan SP-2000 from Mediscience?
The Sonoptek SP-2000 combines A-Scan biometry and B-Scan ultrasound imaging, allowing ophthalmic facilities to perform both biometric measurements and ultrasound image assessment using one system.
Its combination of contact and immersion measurement, multiple IOL formulas, image zoom, cine-loop recording, PDF case reporting and external print output supports a broader clinical documentation workflow.
Mediscience supplies ophthalmic diagnostic equipment for hospitals, eye clinics and institutional buyers. Contact Mediscience for B2B pricing, availability and configuration details.
| Technical Specification: | |
|---|---|
| U/S Imaging: B-Scan | (Biometry) / A-Scan |
| U/S Probe: 12.50 MHz magnetic driven noiseless probe. | U/S Probe: 10 MHz solid & light probe with Fixation light. |
| Scanning Mode: 53° Sector scanning | Measurement Range: Short to Extra large eye (14 mm ̴ 48mm) |
| Clinical Resolution: 0.1mm | Precision: ± 0.05mm |
| Precision: lateral ≤ 10%, vertical ≤ 5% | Measurement mode: Auto/ Manual (using foot switch) |
| Gain: 20dB to 105dB with variable gain control. | Measurement Method: contact & Immersion method |
| Depth of Scanning: 0mm ̴ 50mm | Eye type: Phakic normal cataract, DENS Cataract, Aphakic, Pseudo Phakic & CUSTOM DEFINED. |
| Zoom: Multi level zooming of an image or its section. | Store (Scans/Eye): 10scanning result for each eye. |
| Measure mode: Distance Perimeter & area within captured image. | Calculation Formulas: SRK-II, SRK-T, BINKHORST-II, |
| Case Report: PDF formate case report archiving | HOLLADAYS, HOFFER-Q, HAIGIS & Post LASIK IOL Calculation. |
| Cine Loop: capture 100 frames of movie loop (7sec) | |
| Display Mode: A, A+B, B+B (For comparison), & B mode. | Date Out Put: High resolution Display & hard copy print-out through external desk jet printer. |
| Date Out Put: High resolution Display & Hard copy print-out through external desk jet Printer. | Memory: Innumerable (As per computer memory) |
| Grey Scale: 256 shades/ False colors | Power supply/ Consumption: 220VAC (50-60Hz) / Approx 60VA |
| Power supply/ Consumption: 220VAC (50-60Hz)/ Approx 60VA | |
Frequently Asked Questions
A-Scan is used for ocular biometric measurement, while B-Scan provides ultrasound-based imaging. The SP-2000 incorporates both functions in one system.
Yes. The supplied specifications include several IOL calculation formulas, including SRK-II, SRK-T, Binkhorst-II, Holladay, Hoffer-Q, Haigis and Post-LASIK IOL calculation.
The supplied specifications include cataract and DENS cataract among the available eye-type selections. The system also supports IOL calculation workflows.
Yes. The system supports scan storage, PDF case-report archiving and a cine-loop function capable of capturing 100 frames over 7 seconds.
