Description
PlusOptix Portable Autorefractometer A12R for Pediatric & Mobile Eye Screening

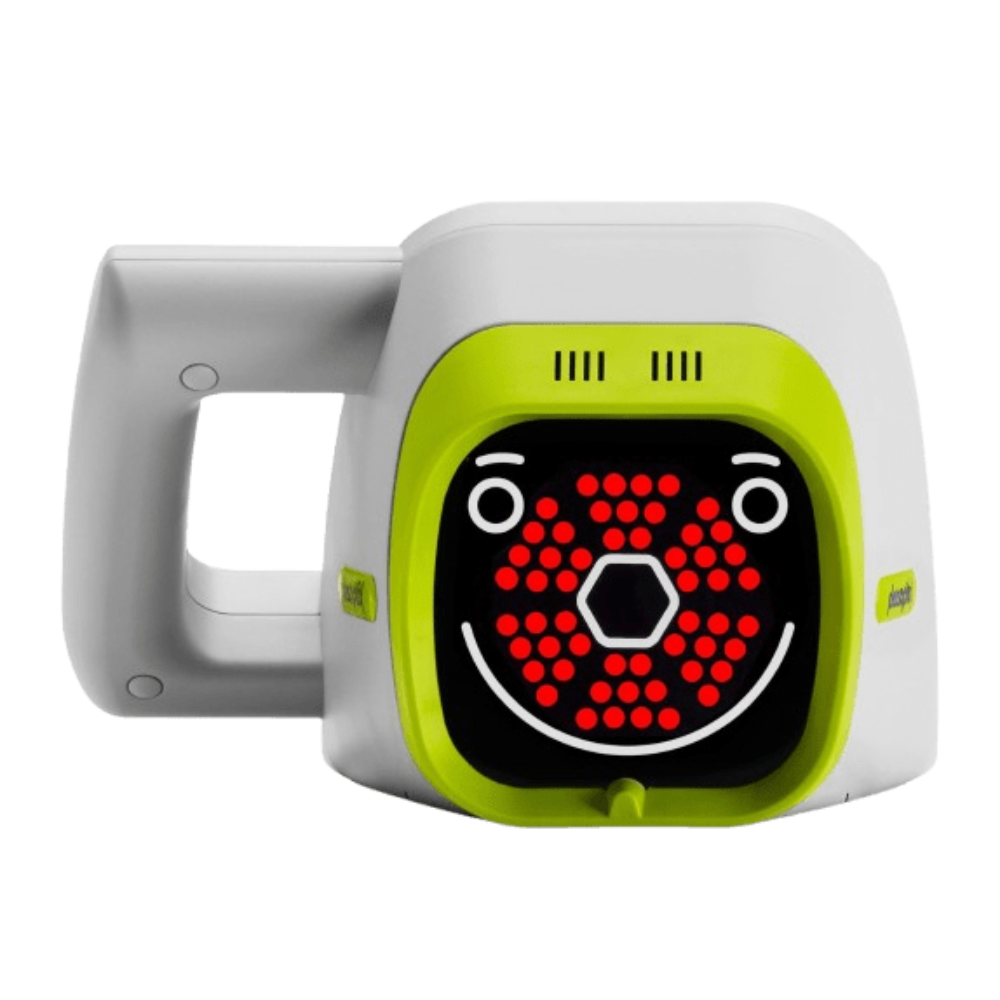

The PlusOptix Portable Autorefractometer A12R is a portable, binocular refractive screening system designed for flexible use in eye clinics, pediatric vision assessment and mobile screening environments. Its measurement configuration is based on a 1-metre working distance, allowing refractive measurements without requiring the patient to place their eye against the instrument.
The supplied specifications provide a -7.0 to +5.0 dpt measurement range for sphere and cylinder, with pupil-size measurement from 4.0–8.0 mm. The system uses a dynamic acquisition process with an average acquisition time of 0.5 seconds and a warble-sound fixation target.
The A12R configuration includes a 4.3-inch monitor, touchscreen operation, USB and SD-card interfaces and 6 × AA battery operation, making it suitable for portable screening workflows.
Key Features
- Portable autorefractometer
- Designed for mobile and clinical vision screening
- 1-metre measuring distance
- Dynamic acquisition with average 0.5-second acquisition time
- Sphere measurement from -7.0 to +5.0 dpt
- Cylinder measurement from -7.0 to +5.0 dpt
- Pupil measurement from 4.0–8.0 mm
- Warble-sound fixation target
- 4.3-inch A12R monitor
- Touchscreen interface
- 2 × USB and SD-card interfaces
- 6 × AA battery operation
- 100–120V / 220–240V compatibility
- 50–60 Hz frequency
- EN 60601, CE and FDA certification listed in supplied specifications
Applications
The PlusOptix A12R can be used in:
- Pediatric vision screening
- Eye clinics
- Optometry practices
- Mobile eye-screening programs
- School vision screening
- Community vision screening
- Hospital ophthalmology departments
- Outreach eye-care programs
Why Choose PlusOptix Portable Autorefractometer:A12R from Mediscience?
The PlusOptix A12R is designed for screening environments where portability and rapid measurement are important. Its 1-metre measurement distance, dynamic acquisition and battery operation allow it to be used in settings where conventional tabletop refractive equipment may not be convenient.
The compact A12R configuration also provides touchscreen operation, USB and SD-card connectivity and a dedicated fixation target, supporting practical screening workflows.
Mediscience supplies ophthalmic diagnostic and screening equipment for hospitals, eye clinics, optometry practices and institutional buyers. Contact Mediscience for B2B pricing, availability and procurement requirements.
| Technical Specifications: | ||
|---|---|---|
| Measurement | A 12C | A 12R |
| Sphere*) | -7,0/+5,0 dpt in 0,25 dpt steps | |
| Cylinder*) | -7,0/+5,0 dpt in 0,25 dpt steps | |
| Pupil size | 4,0 -8,0 mm in 0,1 mm steps | |
| Acquisition time | dynamic, in average 0,5 sec. | |
| Measuring distance | 1 meter (+/- 5cm) | |
| Fixation target | Warble sound | |
| Technical data | ||
| Monitor resolution | 5,7” | 4,3” |
| Touch Screen | Touch Screen | |
| Interfaces | 2 x USB, 1 x SD-Card (WLAN) | 2 x USB, 1 x SD-Card |
| Voltage | 100-120V / 220-240 VAC | |
| Frequency | 50 – 60 Hz | |
| Battery operation | 6 x AA | |
| Certified | EN 60601, CE and FDA | |
Frequently Asked Questions
The system is specified to operate at a 1-metre measuring distance, allowing the measurement process to be performed without conventional close-contact positioning of the instrument.
Yes. Its 6 × AA battery operation, portable configuration and 1-metre measuring distance make it suitable for mobile screening setups.
The supplied specifications identify a warble-sound fixation target.
The supplied configuration includes 2 × USB interfaces and an SD-card interface.
